TDF flange duct corner are key metal fittings used in ventilation and air conditioning systems to connect and fix coplate flange ducts. As a core component of the TDF flange process, it replaces the cumbersome connection method of traditional Angle steel flanges and achieves high-strength sealing and anti-deformation capability of the air duct interface through mechanical interlocking and fastening.
Specifications:
Material: Galvanized steel, aluminium, stainless steel, SPCC etc.
TDF flange duct corner are key metal fittings used in ventilation and air conditioning systems to connect and fix coplate flange ducts. As a core component of the TDF flange process, it replaces the cumbersome connection method of traditional Angle steel flanges and achieves high-strength sealing and anti-deformation capability of the air duct interface through mechanical interlocking and fastening.

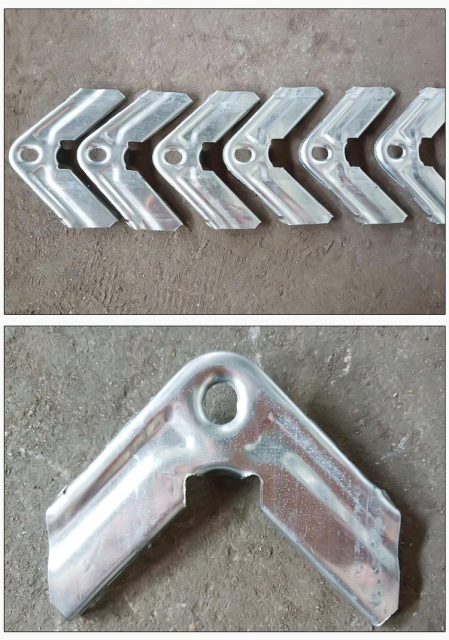

basic form : a 90-degree right-angle structure, designed for the corner connection of rectangular air ducts.
Key dimensions : An 8mm long and 10mm wide oval screw connection hole is provided at the corner for fixing through bolts or self-tapping screws. Some specifications fit 20mm standard flanges, with about 3mm of spacer length for thermal expansion and contraction.
forming process : two stamping forming techniques are used.
First stamping : Cut and separate the corner code semi-finished product from a 2000mm×100mm base material and punch out elliptical holes.
Secondary stamping turns the corner upwards to form a semi-circular shallow groove. The groove depth should be moderate to ensure that the air duct flange edge is tightly wrapped without crushing the material. 2 Material and specifications
common materials :
galvanized steel sheet : the most commonly used material, with a dense zinc coating on the surface, which is resistant to oxidation, wear and corrosion.
stainless steel : such as 201 or 304 stainless steel, which has better moisture resistance and rust prevention, is suitable for humid environments (such as underground garages, computer rooms), and is lighter in weight.
zinc alloy : used in some high-end or special requirements products.
Thickness specification :
Regular thickness : 1.0mm - 2.5mm. Among them, 1.0mm thick galvanized or stainless steel corner are widely used in commercial projects, providing both load-bearing stability and ease of installation.
Thickened specifications : Some heavy-duty air ducts or high-pressure systems may use 2.5mm or even thicker plates for pressing to enhance stability.
Note: Corner codes that are too thin (e.g., less than 0.8mm) are prone to deformation over long periods of operation, resulting in loose duct joints, abnormal noises or air leakage.

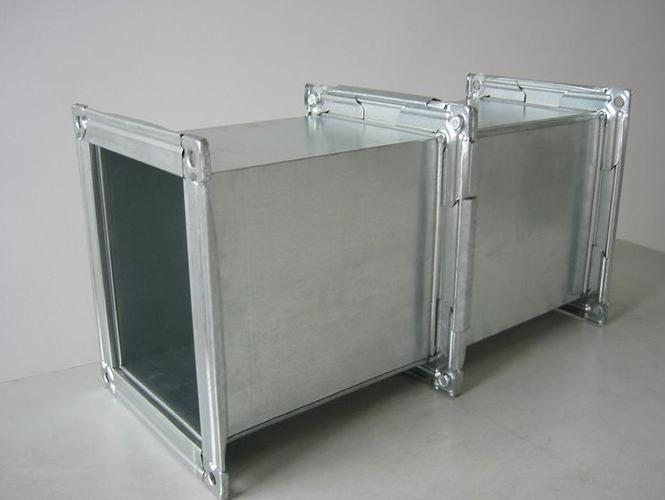

Connection and fixation : the two sections of the air duct are firmly connected by interlocking with the edge of the air duct (by mechanical means such as hooking, clamping, pressing, etc.) in conjunction with bolts or clamps.
Reinforcing flange edge : Enhancing the rigidity of the folded edge of the co-plate flange to prevent the air duct from warping or deforming under positive or negative pressure conditions.
Enhance sealing : Precise bending angles and tight engagement help reduce interface gaps and lower system leakage rate.
Damping and noise reduction : High-quality corner codes can effectively suppress resonance and tremble during the operation of air ducts, avoiding noise such as creaking.
Depending on the cross-sectional size of the air duct, the air pressure grade and the space limitations, the main arrangements of the corner codes are as follows:
right-angle single-side fixed : suitable for small sections or low-pressure air ducts, easy to install.
L-shaped double Angle symmetrical support : Symmetrically installed on both sides of the duct corner, providing a more even force distribution, suitable for medium section ducts.
Diagonal triangular reinforcement : In large cross-section ducts (e.g. 900×630mm and above) or high vibration environments, diagonal bracing is used to form a triangular stable structure with two or more corner codes, significantly enhancing the resistance to deformation.
5 Advantages and application scenarios
advantage :
Construction efficiency : No need for on-site cutting, welding or drilling, pre-punched design makes installation quick and easy, with a "click".
Cost savings : Compared with traditional Angle steel flanges, it saves materials (no Angle steel, flat iron) and reduces labor hours.
Neat and tidy : The interface is flat, with no exposed weld points or rough edges, suitable for commercial places with aesthetic requirements.
Strong interchangeability : Standardized production for easy bulk purchase and replacement.
application scenarios :
Fresh air and air conditioning systems in commercial buildings.
Ventilation ducts in damp environments such as underground garages and subway stations.
Supply and exhaust systems for industrial plants and clean rooms.
Air ducts in the ceilings of hotels, hospitals and office buildings with high requirements for noise control.
6 Selection and maintenance recommendations
Material selection recommendations : Prefer galvanized or stainless steel corner codes with a thickness of no less than 1.0mm. In damp or corrosive gas environments, make sure to use stainless steel to prevent rust.
Quality inspection : High-quality corner codes should have smooth edges that do not cut hands, straight bending lines, uniform galvanized coating without peeling, and precise elliptical hole positions.
Compatible use : Corner codes are usually used in conjunction with hook codes and snap strips to form a triple guarantee system of "corner code load-bearing positioning + hook locking flange + snap strip transverse locking" to ensure long-term stability of the interface.
Although the TDF flange duct corner code is a small accessory, its quality and installation accuracy directly affect the sealing, noise reduction and service life of the entire ventilation system. In engineering practice, a reputable manufacturer should be chosen and the type and layout should be reasonable according to the specific working conditions.
Precision Duct Connection in Commercial Ventilation Projects
In large-scale commercial ventilation environments, duct integrity and airtightness are paramount to system performance and regulatory compliance. The TDF flange duct corner’s role is to connect rectangular coplate flange ducts securely, mitigating air leakage across system interfaces. Its mechanical interlocking design and material robustness enable it to withstand fluctuations in operational pressure, noise vibration, and thermal expansion. The product’s compatibility with commonly used metals allows seamless integration within existing duct fabrication processes, making it an essential component for HVAC flange suppliers and spiral flange manufacturers targeting commercial infrastructure upgrades.
Enhancement of Air Conditioning Duct Stability and Noise Control
Within air conditioning system installations, maintaining flange edge rigidity while minimizing resonance and noise propagation is critical to occupant comfort and equipment longevity. The TDF flange duct corner addresses this by reinforcing duct corners to prevent warping caused by airflow pressure and vibration. Its pre-punched fastening holes facilitate fast installation with standard fastening hardware, eliminating welding complexities. This not only speeds up project delivery but also achieves airtight joints critical for energy-efficient HVAC operations. As a result, spiral duct flange manufacturers and HVAC flange suppliers incorporate these fittings to meet stringent operational standards and enhance overall system performance.
What materials are available for your TDF flange duct corner products?
We offer the TDF flange duct corner in several durable materials including galvanized steel, stainless steel (201 and 304 grades), aluminum, zinc alloy, and SPCC. These options ensure corrosion resistance and long service life suitable for various HVAC applications.
Can you provide custom thickness options for the TDF flange duct corner?
Yes, we supply thickness options ranging from 1.0mm to 2.5mm. Thicker specifications are available for heavy-duty or high-pressure uses to meet specific structural and performance requirements in your ventilation systems.
How does the TDF flange duct corner installation process work?
Our product is designed with pre-punched oval holes (8mm x 10mm) allowing quick fixing using bolts or screws. This mechanical interlocking system eliminates the need for welding, simplifying installation and ensuring a secure, airtight connection between ducts.
Do you supply spiral duct flange or spiral flange products apart from TDF flange corners?
Yes, as a trusted HVAC flange supplier, we also offer spiral duct flange and spiral flange components suitable for various duct configurations. Contact us for details on availability, customization, and bulk order options.
